Bristol's Optical Thickness Gauges are controlled using Opti-Cal™ software – a powerful tool that allows you to see measurement results in real-time.
Opti-Cal is a Windows®-based program that allows you to see the interferometer signal, control measurement parameters, and report thickness data. For systems equipped with a camera probe, a sample alignment window provides a helpful tool for easy set up.

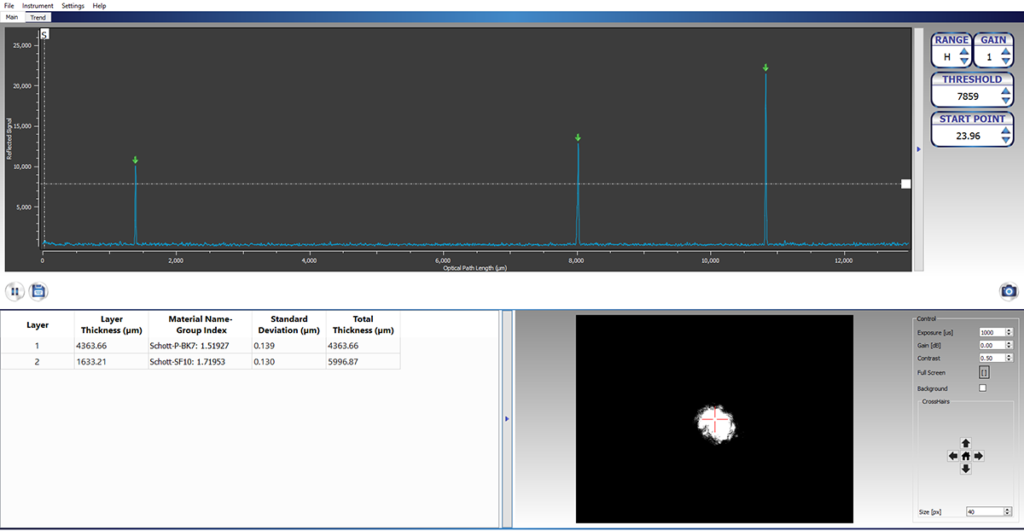

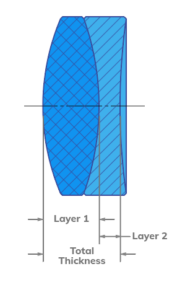

The Opti-Cal screenshot below shows thickness measurement results for a simple lens assembly (illustrated in Figure 1) consisting of two glass elements.
![simple-lens-assebly-schematic simple-lens-assebly-schematic](https://www.bristol-inst.com/wp-content/uploads/2024/05/simple-lens-assebly-schematic-1.jpg)
![optical_screenshot_withlabels optical_screenshot_withlabels](https://www.bristol-inst.com/wp-content/uploads/2024/05/optical_screenshot_withlabels.jpg)
Opti-Cal software is included with every thickness gauge. Multi-user licensing and future software updates are also
provided at no additional cost.
Want to utilize your own interface?
Our thickness gauges support a library of SCPI Commands that can be called upon in custom software applications such as LabVIEW or Python. Contact us to learn more about our SCPI capabilities.
